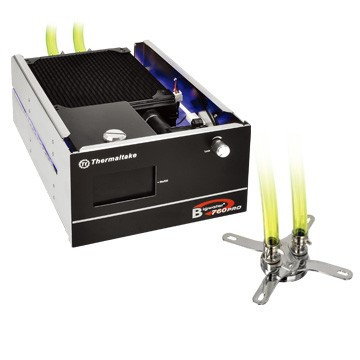

Thermaltake CLW0220 BigWater 760 Pro 2U Bay Liquid Cooling System

Availability: Ships in 2 business days
Ships in 2 business days
 Calculated at checkout

Sorry but this item is currently unavailable.

Please check back at a later stage.

This product is available for pre-order only

Click the button below to add the Thermaltake CLW0220 BigWater 760 Pro 2U Bay Liquid Cooling System to your wish list.


Product Description

2U Bay Drives Liquid Cooling System
New Designed Radiator
Metallic mirror coating Copper base water blocker
Ultra Low Noise VR Fan
Coolant Level Monitoring
Play with High Extendibility

2U Bay Drives Dimension : 252.8mm(L) x 145.8mm(W) x 84mm(H)
Weight : 1.5kg
Application CPU : AMD FM2/FM1/AM3+/AM3/AM2+/AM2
Intel LGA 2011/1366/1155/1156/1150/775
Water Block Material : Copper
Dimension : Ø 45mm x 35mm(H)
Connector : For 9.5mm ID (3/8”) tubing
Weight : 156 (g)
Pump Dimensions : 75(L) x 70(W) x 75(H) mm¡¡
Bearing : Ceramic bearing
Maximum Capacity : 500 L/ hr
Rated Voltage : DC 12V
Input current : 600 mA
Connector : 3 pin
Noise : 16 dBA
Life time : 80,000 hr (MTBF)¡¡
Radiator Dimensions : 144.3(L) x 120(W) x 33(H) mm
Material : Aluminum
Connector : For 9.5mm ID (3/8”) tubing
Fan Fan Dimension : 120(L) x 120(w) x 25(H) mm
Fan Speed : 1600~2400 RPM
Rated Voltage : 12V
Noise : 29.4 ~39.9dB
Life Expectancy : 30,000 hr
Connector : 3pin
Liquid Tank Dimensions : 79.9 (L) x 67.8(W) x 76.4(H) mm
Capacity : 270 c.c
Tube Dimensions : 9.5mm ID(3/8”) tube
Material : Green UV
Coolant Capacity : 500 c.c
Major Material Ingredient : Propylene Glycol

Other Details


Find Similar Products by Category

Vendors Other Products

Product Reviews


Write a review

  1. Thermaltake Bigwater 760 5 Star Review

    Posted by on Nov 12th 2015

    This is the 3rd unit I have used. I don't want to use anything else. I plan to order 2 more. I haven't had an over heat problem sense I started using them. They keep both the processer and mother board chip sets cool.
