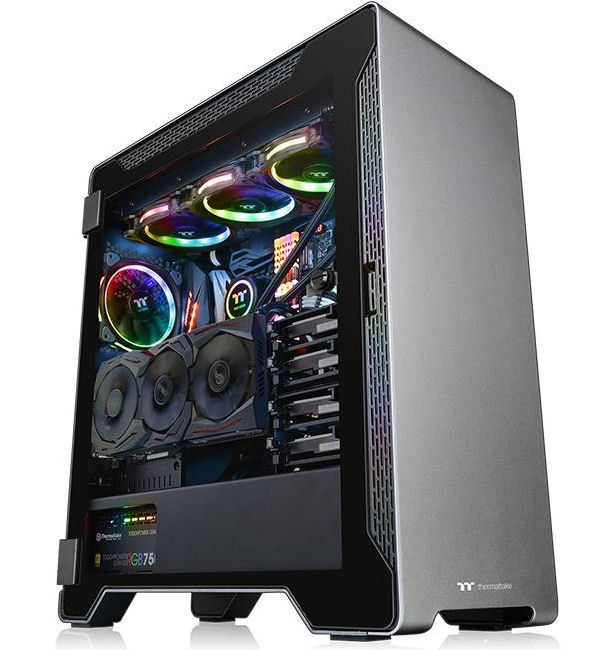

Thermaltake CA-1L3-00M9WN-00 A500 Aluminum Tempered Glass Edition Mid Tower Chassis

Price:
 $269.00
MPN:
 CA-1L3-00M9WN-00
Brand:
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Click the button below to add the Thermaltake CA-1L3-00M9WN-00 A500 Aluminum Tempered Glass Edition Mid Tower Chassis to your wish list.

SHARE

Product Description

Thermaltake A500 Aluminum Tempered Glass Edition mid-tower chassis features a sleek aluminum front panel, two 4mm tempered glass panels, two pre-installed 120mm front fans and a 120mm rear fan for optimal system ventilation. It has a built-in power supply cover for clean and easy cable management and also supports up to a standard ATX motherboard. Accommodating the latest PC hardware including the most advanced graphic cards and air/liquid cooling solutions, the A500 Aluminum TG is designed for those who are looking for a chassis with outstanding thermal performance that is further complemented by a clean and simply designed case.



P/N CA-1L3-00M9WN-00
Case Type Mid Tower
Dimension (H x W x D) 560 x 236 x 510 mm
(22 x 9.3 x 20.1 inch)
Net Weight 14.82 kg / 32.67 lb
Side Panel 4mm Tempered Glass x 2 (Left & Right)
Color Exterior: Space Gray; Interior : Black
Material Aluminum & SPCC
Cooling System Front (intake) :
120 x 120 x 25 mm fan (1000rpm, 22dBA) x 2
Rear (exhaust) :
120 x 120 x 25 mm fan (1000rpm, 22dBA) x 1
Drive Bays 2.5” or 3.5” x 4 (HDD Cage)
2.5” or 3.5” x 2 (HDD Cage); 2.5” x 1(HDD Bracket)
Expansion Slots 8 + 2
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Ports USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Type-C x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
3 x 120mm , 3 x 140mm
Top:
3 x 120mm , 2 x 140mm
Rear:
1 x 120mm
Radiator Support Front:
1 x 360mm , 1 x 420mm
Top:
1 x 360mm , 1 x 280mm
Rear:
1 x 120mm
Clearance CPU cooler height limitation: 160mm
VGA length limitation: 295mm(with HDD rack)
420mm(without HDD rack)
PSU length limitation: 220mm
Model A500 Aluminum TG

Other Details

MPN:
CA-1L3-00M9WN-00
