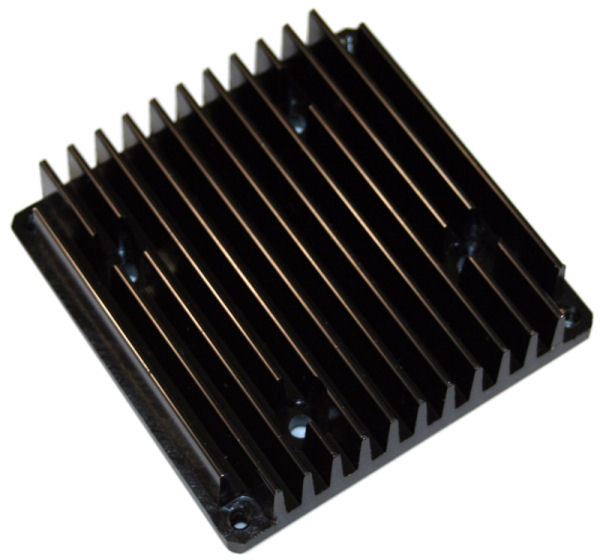

Swiftech MCP35X-HS MCP35X Series Black Aluminum Heatsink

Price:
 $16.95
MPN:
 MCP35X-HS
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Swiftech MCP35X-HS MCP35X Series Black Aluminum Heatsink to your wish list.

SHARE

Product Description

Product Description


The MCP35X-HS is an optional heatsink compatible with all Swiftech� MCP35XX series pumps (MCP350, 355, 35B, 35X). The heatsink is intended to provide additional cooling to pumps running under high stress and/or high ambient temperature conditions. The substantial reduction in operating temperature may result in increased components life.

The MCP35X-HS heatsink is designed to operate either in passive mode (without a fan), or can also be fitted with an optional 80x15mm fan.  It is bolted to the pump base and mated via a thermal pad. Feet terminated by rubber bushing  for noise/vibration insulation are included with the product. When used in passive mode, the heatsink orientation can be rotated 90 Degree in relation to the pump so that the fins will fully benefit from existing air-flow.

Application Example






Included accessories:
  • Heatsink & mounting screws
  • Thermal Pad
  • (4) Custom feet
  • (4) Rubber bushing & screws
Specs and Support:

Material: Black Anodized Aluminum Extrusion
Dimensions: 80x80x18mm
Supported fans: 80x15mm only
Weight: 5.9 oz (167g)
The distance between the mounting holes is 1 ¾ inches.
