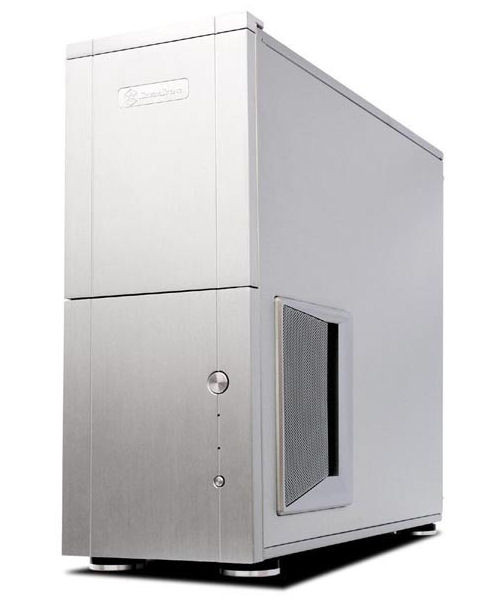

Silverstone TJ10S Extended ATX Tower Case

Price:
 $419.00
MPN:
 TJ10S
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Silverstone TJ10S Extended ATX Tower Case to your wish list.

SHARE

Product Description

Introduction
  Based on the superb Temjin TJ09 chassis released in 2006, the Temjin TJ10 takes another step forward in perfecting the fusion of classic tower styling with the latest in chassis technology. While structurally the same, the TJ10 adds numerous new details to set itself apart from the TJ09. The unique mid-section air duct, which was created to bypass the hard drive cage with 120mm fan to draw cool air from outside of the chassis, can now offer additional support points for extended length graphics cards. The effective cooling layout provided by the all 120mm fan design has been tweaked to further encourage more airflow. For enthusiasts that prefer having a front door with outstanding chassis design and finish, the Temjin TJ10 is a must have.

  Special Feature
  Premium all-aluminum chassis for extended ATX, ATX, SSI motherboards
120mm fan only design for ultimate performance & quietness
Unprecedented air duct dedicated for graphics card cooling
Advanced structural engineering with superior chassis stiffness
User friendly layout with multiple tool-less access
Classic SilverStone styling and finish


  Remark


TJ10 outfitted with AMD QuadFX platform and 12" long Leadtek Quadro FX 5600 1.5GB GDDR3 in SLI



TJ10 outfitted with AMD FX platform and 12" long Diamond Radeon HD 2900XTX 1GB GDDR4 (OEM version) in CrossFire

Graphic card length reference:
Diamond Radeon HD 2900XTX 1GB GDDR4 (oem version) - 12"
Leadtek Quadro FX 5600 1.5GB GDDR3 - 12"
NVIDIA GeForce 8800 Ultra/GTX - 10.5"
ATI Radeon HD 2900XT - 9.5"
NVIDIA GeForce 8800GTS - 9"



Model No.

 SST-TJ10B (black)
 SST-TJ10S (silver)
 SST-TJ10B-W(black, with window)
 SST-TJ10S-W(silver, with window)

 Material

 Aluminum front panel/door, 2.0mm aluminum body

 Motherboard

 SSI, Extended ATX, ATX, Micro ATX

 Multimedia

--

 Resolution

--

 Driver Bay

 External
  5.25” x 4
  3.5” x 1
 Internal
  3.5” x 6

 Cooling System

 Front
  1 x 120mm fan slot
 Rear
  1 x 120mm exhaust fan, 1200rpm, 21dBA
 Side
  1 x 120mm mid-section fan, 1200rpm, 21dBA

 Top
  2 x 120mm fan slots
 Bottom
  --
 Internal
  --


 Expansion Slot

 7

 Front I/O Port

USB2.0 x 2
IEEE1394 x 1
audio x 1
MIC x 1

 Power Supply

 1 x Optional standard PS2 (ATX) or 1 x Redundant PS2

 Expansion Card

 optional (support for 12" graphics card)

 Dimension

 207 mm (W) x 521 mm (H) x 644 mm (D)

 Extra

 --

@@START_COMMENT For LC19 , ML02 insert date:960711 @@END_COMMENT

Remark

  To build your water cooling system, we recommend equip your TJ10 with RADSUPPORT09 to install a 120x2 radiator in TJ10.
