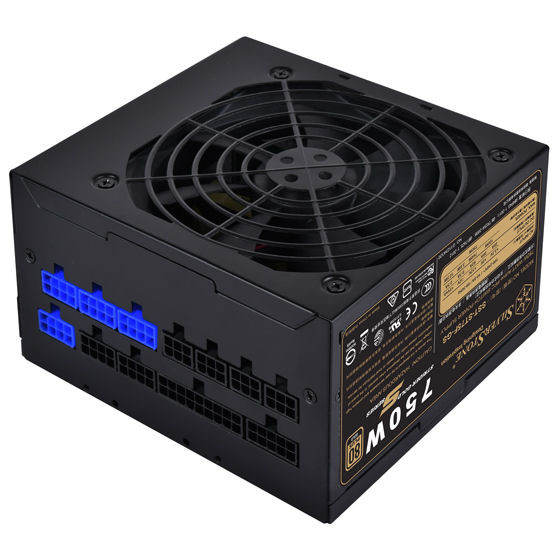

Silverstone SST-ST75F-GS-V3 750W 80 PLUS Gold Modular Power Supply

Price:
 $159.99
MPN:
 SST-ST75F-GS-V3
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ST75F-GS-V3 750W 80 PLUS Gold Modular Power Supply to your wish list.

SHARE
Pin It

Product Description

Model No.
SST-ST75F-GS (V3.0)
Max. DC Output
750W
Load Range
  +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62A 2.5A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Power density
415W per liter
Color
Black (lead-free paint)
Combined +3.3V & +5V
100W
Combined +12V
744W
Input Voltage
90V~264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.（PF>0.9 at Full Load）
Efficiency
87%~90% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over current protection
Over voltage protection
Over temperature protection
Under voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector（600mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（550mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
4 x 8/6-Pin PCIE connector（"550mm"）
8 x SATA connector（"600mm /150mm / 150mm / 150mm" x 2）
6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” x 2）
2 x 4-Pin Floppy connector（150mm）
Cooling System
Single 120mm silent fan
Form factor  ATX
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.31 kg
Certification
80 PLUS Gold
Other

Compatible with ATX12V v2.4
