SATA (B key) is supported only.
Used for SATA SSDs, and interfaced through the AHCI driver and SATA 3.0 (6 Gbit/s) port exposed through the M.2 connector.

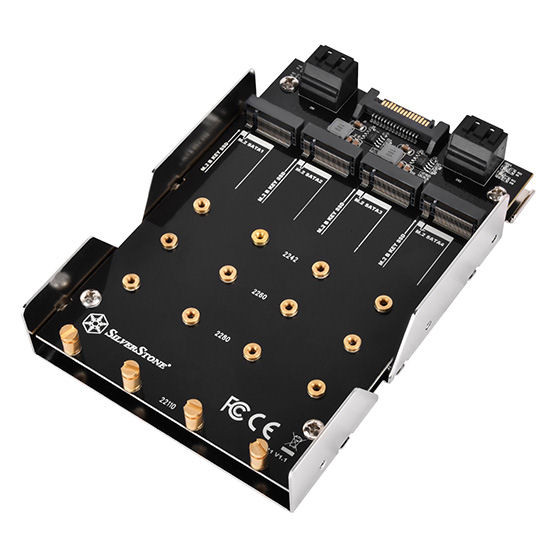

SilverStone’s SDP11 is an adapter designed for users wanting to utilize or add speedy M.2 devices such as SSD onto their existing PC. SDP11 is a smartly designed drive bay converter that maximizes up to four M.2 device (B key) for connecting to a SATA III port for added storage potential. For users looking to have the fastest data access speed on a desktop computer, the SDP11 is a must have.
￭ Enhances your system by mounting four M.2 (NGFF) SATA-based SSDs into one 3.5” drive bay
￭ Supports multiple drive lengths 42mm，60mm，80mm，110mm
￭ Improves system performance by replacing your platter drive with up to four M.2 SSDs
￭ Exclusive stud easily to fix on pre-drilled mounting holes facilitate installation and removal of SSD
￭ No driver installation required
|Material||1.0mm painted steel|
|Power connector||SATA 15-Pin x 1|
|Host interface||7-Pin SATA connector x 4|
|LED indicator||HDD Access: Blue blinking**|
|Application||3.5" internal drive bay|
|Capacity||Supports up to 4pcs M.2 SATA SSD|
|SATA Cable length||500mm±10mm|
|Number of SATA cable||4 pcs|
|Module Key||SATA-based B key* x 4|
|Dimension||101.6 mm (W) x 25.4 mm (H) x 146 mm (D)
4" (W) x 1" (H) x 5.75" (D)
