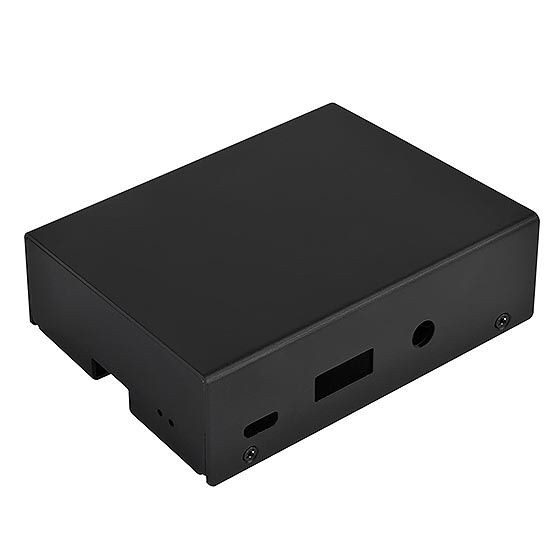

Silverstone SST-PI01B Raspberry Pi 3B+/3B/2B/1B+ Case

Availability: Ships in 2 business days
 Calculated at checkout

Click the button below to add the Silverstone SST-PI01B Raspberry Pi 3B+/3B/2B/1B+ Case to your wish list.


Product Description

To fulfill the needs of Raspberry Pi users, SilverStone created PI01, an aluminum case compatible with Raspberry Pi 3B+/3B/2B/1B+ version. It’s easy to install and includes two heatsinks and thermal pads to help conduct heat from CPU to aluminum casing.


■ Wall mount capable

■ Aluminum casing designed for additional heat dissipation

■ Two heatsinks and thermal pads included

■ Compatible with Raspberry Pi 3B+/3B/2B/1B+ version


Model No. SST-PI01B
Color Black
Material Aluminum
Support Raspberry Pi Version Raspberry Pi 3B+/3B/2B/1B+ version
Net weight 55 g
Dimension 90 mm (W) x 28 mm (H) x 62 mm (D)


Material Aluminum
Net Weight and dimension Heatsink 1 : 9 mm (W) x 15.2 mm (H) x 9 mm (D), 2.6 g
Heatsink 2 : 14 mm (W) x 15.2 mm (H) x 14 mm (D), 6.5 g


Thermal Pad
Thermal conductivity 1.5W/m.k
Operating temperature -40 °C ~ 200 °C
Thermal pad thickness 0.5 / 1.25mm
Net Weight and dimension Blue Pad : 14 mm (W) x 0.5 mm (H) x 14 mm (D), 0.25 g
Gray Pad 1: 14 mm (W) x 1.25 mm (H) x 14 mm (D), 0.4 g
Gray Pad 2: 9 mm (W) x 1.25 mm (H) x 9 mm (D), 0.2 g
