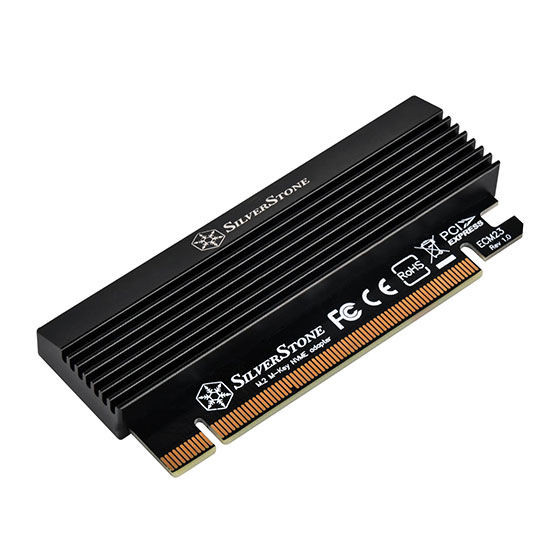

Silverstone SST-ECM23 1 x M.2 (M Key) to PCI-E x4 Aluminum Thermal Pad Adapter

Price:

$44.79

MPN:

SST-ECM23

Brand:

SILVERSTONE

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

SilverStone’s ECM23 is an adapter card designed for users wanting to utilize or add speedy M.2 devices such as SSD onto their existing PC or motherboard. ECM23 supports M.2 device (M key) to run via the super fast PCIe interface for added storage potential. It also includes an aluminum heatsink to enhance cooling and protect installed M.2 device. For users looking to expand their M.2 slots with fastest interface possible, the ECM23 is a must have.

The following SSD models have been tested and verified by SilverStone to work optimally with the product presented on this page.
Intel NVMe SSD 760p Series
Samsung NVMe SSD 970 EVO M.2
Samsung NVMe SSD 970 PRO M.2
Samsung NVMe SSD SM951/961 M.2
Samsung NVMe SSD 960 EVO M.2
Samsung NVMe SSD 960 PRO M.2

Model No.	SST-ECM23
LED indicator	PCIe M.2 SSD Read / Write LED: Blue blinking
Interface	PCI Express x 4 via full size x 16 pinout
SSD Interface	M.2 (NGFF)
Module Key	PCIe x 4 NVMe-based M key
Operating system support	Microsoft Windows 7 (32bit/64bit), 8/8.1/10 (32bit/64bit) or future release version Mac OS 10.2.8 or above Linux
Support Length of M.2 SSD	30mm, 42mm, 60mm, 80mm
Net Weight and dimension	Heatsink with PCB:105mm (W) x 11mm (H) x 44mm (D), 52g Heatsink with PCB:4.13" (W) x 0.43" (H) x 1.73" (D), 52g
Thermal Pad
Thermal conductivity	1.5W/m.k
Operating temperature	-40 °C ~ 220 °C
Thermal pad thickness	0.5 / 1 / 1.5mm
Net Weight and dimension	Charcoal Pad：70 mm (W) x 0.5 mm (H) x 20mm (D), 1.95g Blue Pad ：70 mm (W) x 1 mm (H) x 20mm (D), 3.6g Gray Pad: 70 mm (W) x 1.5 mm (H) x 20mm (D), 5.5g Charcoal Pad：2.76" (W) x 0.02" (H) x 0.79" (D), 1.95g Blue Pad：2.76" (W) x 0.04" (H) x 0.79" (D), 3.6g Gray Pad：2.76" (W) x 0.06" (H) x 0.79" (D), 5.5g
