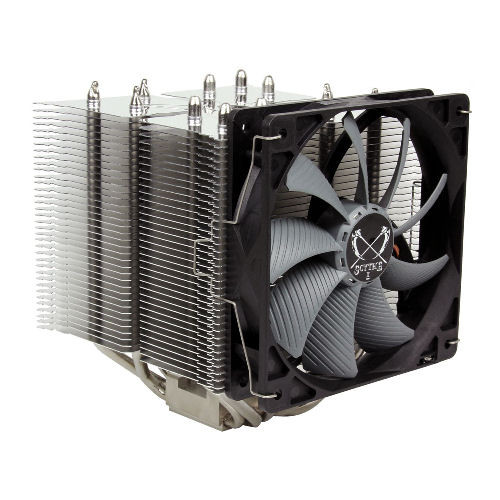

Scythe SCNJ-4000 Ninja 4 T-M.A.P.S H.P.M.S 120mm PWM Fan Intel/AMD CPU Cooler

• » Model Name

Ninja 4

• » Model Number

SCNJ-4000

• » Intel® Socket Compatibility

Socket LGA775 / Socket LGA1150 / Socket LGA1151 / Socket LGA1155 / Socket LGA1156 / Socket LGA1366 / Socket LGA2011 / 2011-v3

• » AMD® Socket Compatibility

Socket AM2 / Socket AM2+ / Socket AM3 / Socket AM3+ / Socket FM1 / Socket FM2 / Socket FM2+ ****Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws! If the backplate uses plastic-pins, mounting of this cooler is not possible.****

• » Overall dimensions

130 x 153 x 155 (including fan)

• » Weight

780 g / 900 g (with Fan)

• » Accessory

Installation hardware for Intel® and AMD® Socket, thermal grease, second pair of fan clips, screw driver, installation manual.

• » Base plate material

Nickel-plated copper

• » Fan Model Name

GlideStream 120 PWM

• » Fan Model Number

SY1225HB1212H-PS (3 operation modes: H/M/L)

• » Fan Dimensions

120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 in

• » Fan Noise Level

L: 4.0 ~ 12.5 dBA * M: 4.0 ~ 23.5 dBA * H: 4.0 ~ 29.5 dBA

• » Air Flow

L: 21.97 ~ 73.90 m³/h (12.93 ~ 43.50 CFM) ***** M: 21.97 ~ 73.90 m³/h (12.93 ~ 63.73 CFM) ***** H: 21.97 ~ 73.90 m³/h (12.93 ~ 84.64 CFM)

• » Fan Speed

L: 300 rpm (±300) ~ 800 rpm (±10%) ***** M: 300 rpm (±300) ~ 1,150 rpm (±10%) ***** H: 300 rpm (±300) ~ 1,500 rpm (±10%)

• » Voltage / Amperage

DC 12V / 0.22A

• » Static Pressure

L: 0.69 ~ 4.90 Pa (0.07 ~ 0.50 mmH²O) ***** M: 0.69 ~ 10.40 Pa (0.07 ~ 1.06 mmH²O) ***** H: 0.69 ~ 17.55 Pa ( 0.07 ~ 1.79 mmH²O)

• » Fan Bearing Type

Sleeve Bearing
