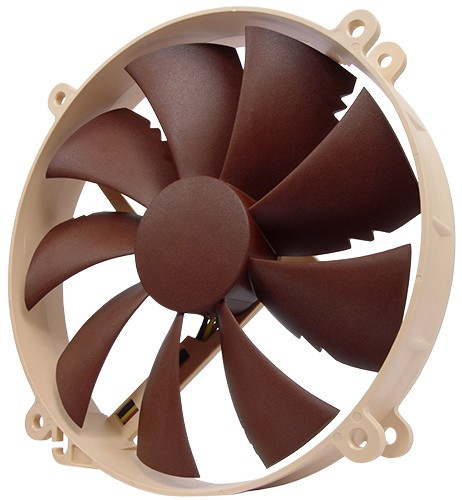

Noctual NF-P14 FLX 140x25mm Votex Control Notches Fan

Price:
 $29.82
MPN:
 NF-P14 FLX
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Click the button below to add the Noctual NF-P14 FLX 140x25mm Votex Control Notches Fan to your wish list.

SHARE

Product Description

Following in the footsteps of the successful NF-P12, the NF-P14 is a highly optimised, premium quality 140mm fan with Vortex-Control Notches for superb quietness and outstanding aerodynamic efficiency. Metal reinforcements, SCD2 technology and Noctua’s premium grade SSO-Bearing guarantee exceptional running smoothness and excellent long-term stability. Using the same hole-spacing as common 120mm fans and achieving a superior airflow/noise ratio, the NF-P14 is ideal for upgrading 120mm CPU or case fans.



VCN 140mm Impeller with Vortex Control Notches
Thanks to its psycho-acoustically optimised nine blade impeller with staggered Vortex-Control Notches, the NF-P14 combines superb quietness with exceptional airflow and static pressure. button

MR Metal Reinforcements
Both the impeller hub and the bearing shell of the NF-P14 are metal reinforced in order to achieve ultimate manufacturing precision, high durability and vibration-free running. button

Round Frame Round frame with 120mm mounting holes
Using a round frame with the same hole-spacing as common 120mm fans and producing more airflow due to its larger diameter, the NF-P14 is a perfect upgrade for 120mm CPU or case fans. Thanks to the supplied adaptors, the NF-P14 also fits common 140mm mounting holes. button

flx 3 speed settings for full flexibility
Providing 1200, 900 and 750 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-P14 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.

SCD Smooth Commutation Drive 2
DThe latest version of Noctua’s advanced SCD drive system ensures superb running smoothness by eliminating torque variations and switching noises. button

SSO SSO-Bearing
Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability. button

Size 140x140x25 mm
Bearing SSO-Bearing
Blade Geometry NF-P14 Blade Design with VCN
Rotational Speed (+/- 10%) 1200 RPM
Rotational Speed with L.N.A. (+/- 10%) 900 RPM
Rotational Speed with U.L.N.A. (+/- 10%) 750 RPM
Airflow 110,3 m³/h
Airflow with L.N.A. 83,7 m³/h
Airflow with U.L.N.A. 71,2 m³/h
Acoustical Noise 19,6 dB(A)
Acoustical Noise with L.N.A. 13,2 dB(A)
Acoustical Noise with U.L.N.A. 10,1 dB(A)
Static Pressure 1,29 mm H2O
Static Pressure with L.N.A. 0,77 mm H2O
Static Pressure with U.L.N.A. 0,53 mm H2O
Input Power 1,2 W
Input Current 0,1 A
Voltage Range 12 V
MTBF > 150.000 h
Scope of Delivery
  • Ultra-Low-Noise Adaptor (U.L.N.A.)
  • Low-Noise Adaptor (L.N.A.)
  • Adaptors for 140mm mounting
  • 4 Vibration Compensators
  • 3:4-Pin Adaptor
  • 4 Fan Screws
Warranty 6 years
