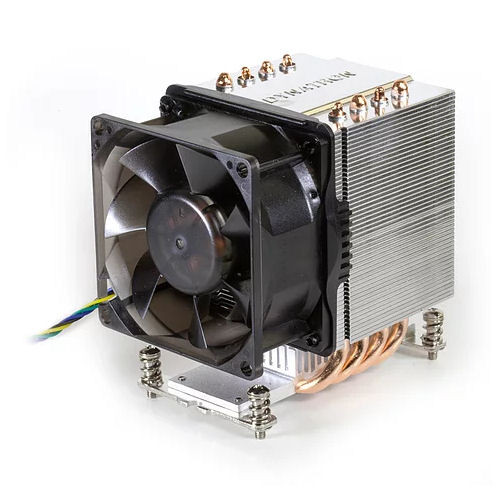

Dynatron A19 AMD Socket AM4 3U Active CPU Cooler

Price:
 $44.99
MPN:
 A19
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Click the button below to add the Dynatron A19 AMD Socket AM4 3U Active CPU Cooler to your wish list.

SHARE

Product Description

Recommend for AMD Processor, Socket AM4. 80x80x38mm powerful fan with PWM function, HCC (Heatpipe Contact CPU) technology heatpipe CPU cooler up to TDP 165 Watts for 3U Server & Up, Workstation.Support CPU Power 95 Watts Heat Dissipation



CPU Support

AMD

CPU Socket

AM4

Solution

3U Server and up, Workstation

Dimensions

107.5 x 78 x 110 mm

Weight

550 g

Material

Aluminum Stacked Fin with Heat Pipes directly contact CPU

Fan Dimension

80 x 80 x 38 mm

Speed

At Duty Cycle 20%: 1000±10% RPM
At Duty Cycle 50%: 2000±10% RPM
At Duty Cycle 100%: 3800 RPM

Bearing

Double Ball

Rated Voltage

12V

Power

At Duty Cycle 20%: 2.2 W
At Duty Cycle 50%: 3.6 W
At Duty Cycle 100%: 7.9 W

Air Flow

At Duty Cycle 20%: 13.8 CFM
At Duty Cycle 50%: 30.78 CFM
At Duty Cycle 100%: 65.4 CFM

Noise Level

At Duty Cycle 20%: 16.0 dBA
At Duty Cycle 50%: 31.5 dBA
At Duty Cycle 100%: 43.4 dBA

Air Pressure

At Duty Cycle 20%: 0.42 mm-H2O
At Duty Cycle 50%: 2.45 mm-H2O
At Duty Cycle 100%: 9.75 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Other Details

MPN:
A19
